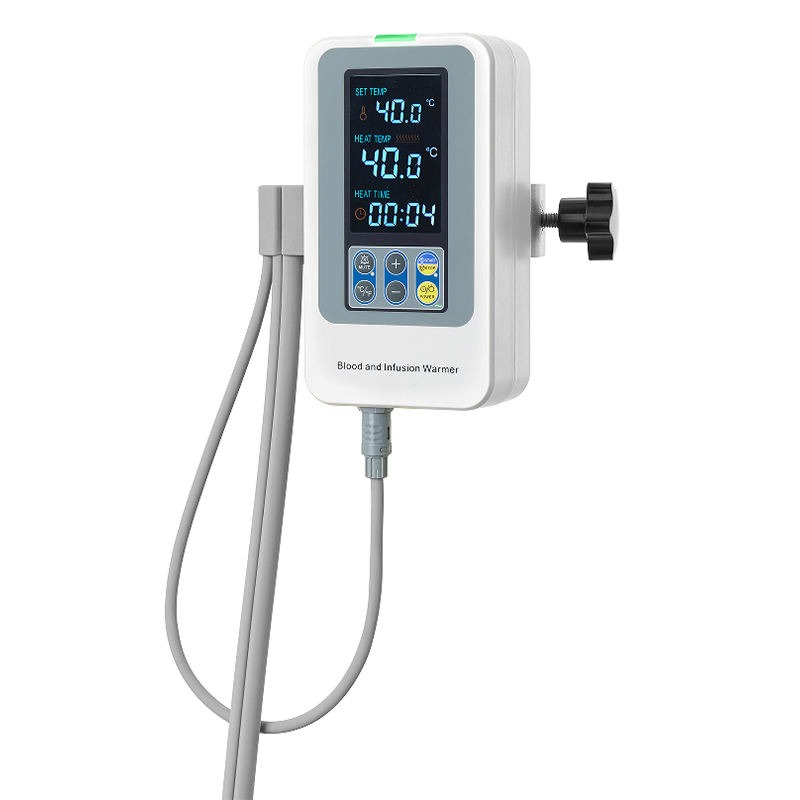

Fluid & Blood Warmer
Blood and Infusion Warmer is to warm the blood or fluid and to relieve the patient’s hyperthermia; it is widely used before operation, during operation and after operation in ICU, NICU, Pediatric Dept., Emergency Dept., and Outpatient Dept., for heating blood or infusion. Different kinds detachable heating profiles, direct interface and simple operation makes it user friendly.
Features List
Multiple Temperature Control Protection Technology
Hardware and software temperature control protection to ensure the effective and safe heating.
Medical Heating Silicone Heating Profile
The heating profile makes the heat reach the patient directly and effectively.
Different Kinds Heating Profiles
IV tubes with diameter 3.5, 5, 7 mm connection to heating profile
60, 90, 100, 120, 140 cm optional.
Dry Heating
Dry flow process, easy installation, fast heating.
Display
Display the preset temp., heating temp., time, alarm message, working status.
Heating Profiles
5 kinds detachable heating profile
60 cm
90 cm
100 cm
120 cm
Specifications
Temperature Setting
℃: 32℃ ~ 42.0℃
℉: 86.9℉ ~ 107.6℉
Temperature Deviation
℃: ≤ ±1℃
℉: ≤ ±1.8℉
Temperature Increment
℃: 0.1℃
℉: 0.2℉
Optional Unit
℃, ℉
Warming Up Time
< 4 min
Overheat Protection
50 ±5℃, hardware and software protection
Alarm
Overheat, low temperature, system error, over time, warming up alarm
Blood/IV Sets
Standard single use PVC blood/IV tubes
(diameter: 3.5–7 mm, applied different heating profiles)
Display
46 × 72 mm
Heating Way
Dry silicone heating profile
Mute Time
2 mins
Heating Profiles
IV tubes with diameter 3.5–7 mm connection
to heating profile 60, 90, 100, 120, 140 cm optional
Heating Time
0 h 00 min ~ 9 h 59 min
Power Supply
100 ~ 240 V, 50 / 60 Hz
Power Consumption
60 VA
Operation Environment
Temp.: +5℃ ~ +30℃
Relative Humidity: 20% ~ 93%
Atmosphere: 70.0 kPa ~ 106.0 kPa
Transportation and Storage Environment
Temp.: -20℃ ~ +55℃
Relative Humidity: 10% ~ 95%
Atmosphere: 50.0 kPa ~ 106.0 kPa
Degree of Protection against Ingress of Liquids
IPX4
Degree of Protection against Electric Shock
Class I, Type CF
Working Mode
Continuous heating
Dimension
140 × 110 × 170 mm
Weight
0.86 kg (1 pc 120 cm heating profile included)
