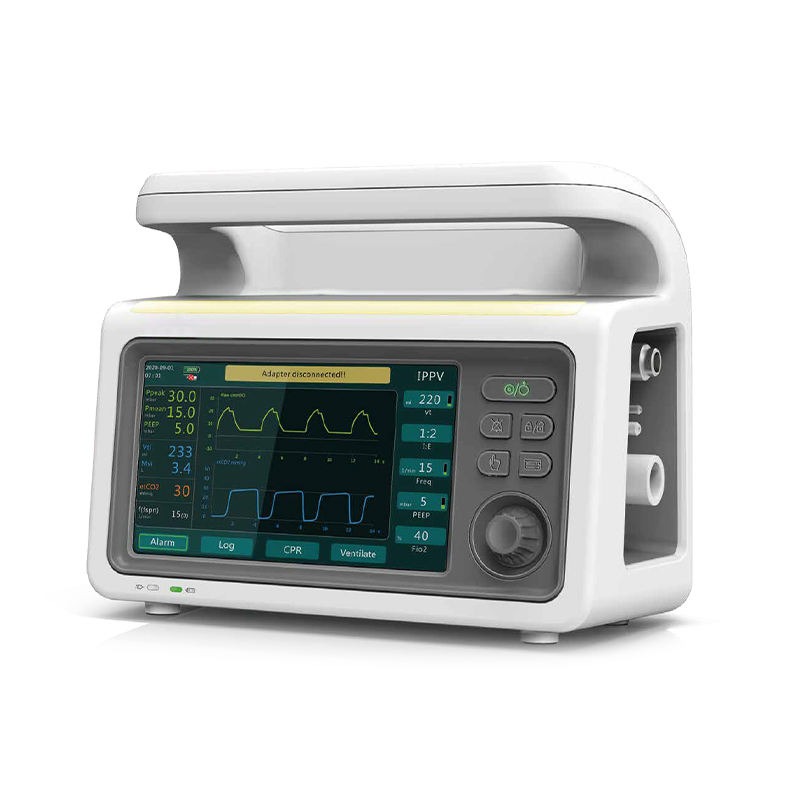

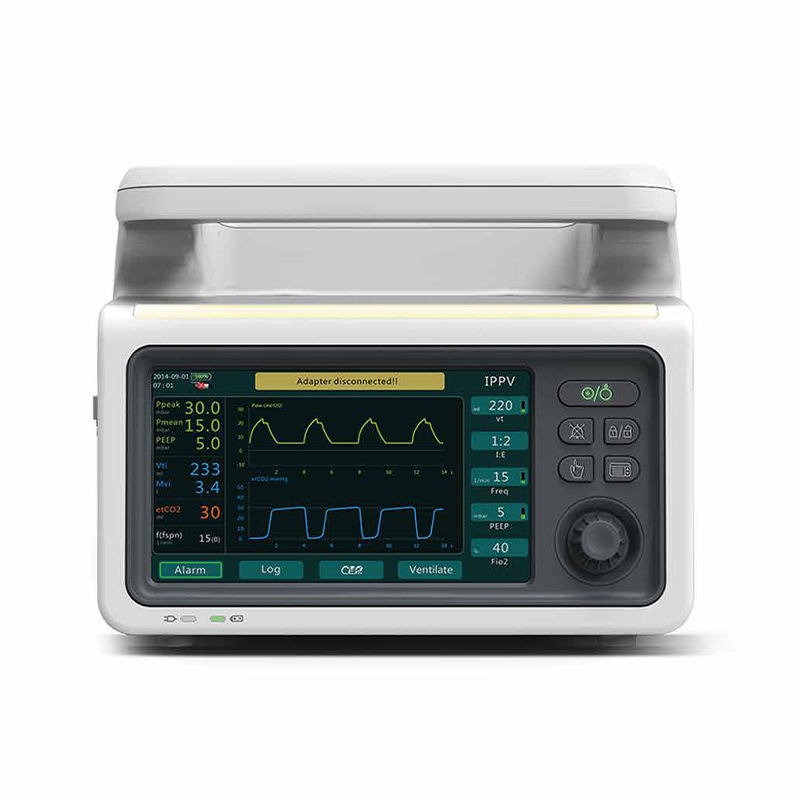

Transport Ventilator
Portable Ventilator Machine Medical Transport Breathing Apparatus Treatment Emergency Respiratory Ventilators Ambulance
Product Parameter
Ventilation Mode
Volume-control mode: V-A/C, V-SIMV, IPPV
Pressure-control mode: P-A/C, P-SIMV, CPAP, PCV
Other mode: CPR, Manual, HFNC
Supply Specifications
Air supply: Medical oxygen
Air supply pressure: 2.7–6.0 bar
Patient Breathing Valve Resistance
Inspiration: < 6 cmH₂O at flow rate of 30, 60 L/min
Expiration: < 6 cmH₂O at flow rate of 30, 60 L/min
Emergency Inhaled Air Inlet: < 6 cmH₂O at flow rate of 15, 30 L/min
Max. Ventilation Flow: ≥ 80 L/min (≥ 40 kPa)
Activation Mode: Pressure activation
Control Parameters
Respiration frequency: 0–120 bpm, with allowance of ±1 bpm or ±5%, whichever is larger
Tidal volume: 50–2500 mL (ATPD) with Allowance of ±20 mL or ±15%, whichever is larger
Oxygen flow velocity: 1–80 L/min, with allowance of ±1 L/min or ±15%, whichever is larger
PEEP / CPAP: 0.3–30 cmH₂O With allowance of ±2 cmH₂O or ±10%, whichever is larger
Inspiratory pressure: 5–60 cmH₂O with allowance of ±2 cmH₂O or ±10%, whichever is larger
Conveyed oxygen concentration: 40%, 100%, 10% (v/v)
Airway pressure limits: 15–70 cmH₂O with allowance of ±2 cmH₂O or ±10%, whichever is larger
Activation pressure : −20 to −2 cmH₂O with allowance of ±1 cmH₂O
Pressure support : 0.3–35 cmH₂O with allowance of ±2 cmH₂O or ±10%, whichever is larger
Pause time ratio : 0–80%, tolerance ±10%
Pressure rise time : Slow / normal / fast
Mechanical Safety Valve : ≤ 100 cmH₂O
